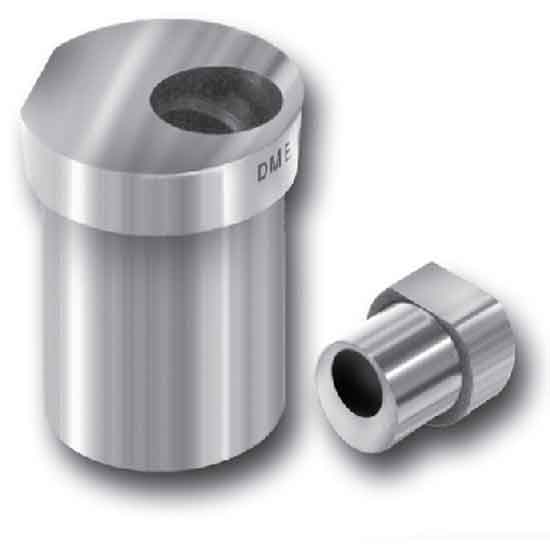

ANGLE PIN INSERT HEIGHT 1.375 HOLE DIA .500 ANGLE 20 DEGREE
Catalog Page# API4202
List Price
Note Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order.
The actual product may differ slightly from the image displayed on the website.
Weight
Product Details
Part Number
API4202
Category Name
Brand
DME - Mold Technologies US/CAN
Select
Angle
20
Head Diameter
1.312
Head Thickness
0.375
Inside Diameter ID
0.5015
Length (L)
1.375
Outside Diameter OD
1.125
Product Category
Angle Pins & Inserts,Angle Pin Inserts,Slide Action,Mold Components
Standard
Imperial
Specs
Material: | AISI 420 SS |
OD: | +.0000/-.0005 |
Length: | +.010/-.000 |
Head Dia.: | +.000/-.010 |
Hardness: | 32-38 HRC |
