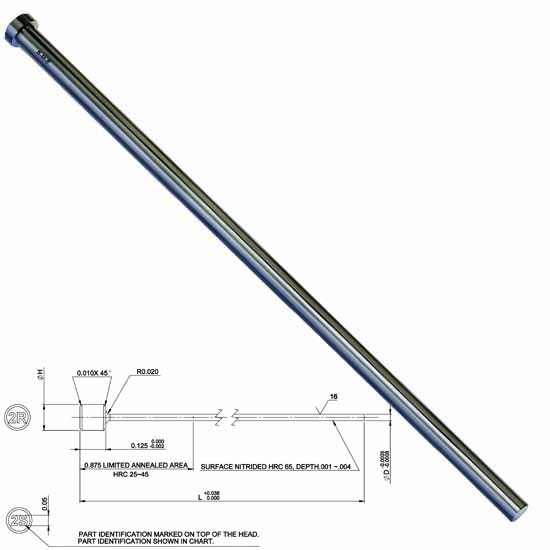

EJECTOR PIN THRU HARD 3/64 X 6 HEAD 5/32

# THX3M6RD

Catalog Page
Substitute Parts

Location Quantity



Weight

Note Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order.
The actual product may differ slightly from the image displayed on the website.

Product Details

Part Number
THX3M6RD

Category Name
Brand
DME - Mold Technologies US/CAN
Select
Diameter
0.0468
Head Diameter
5/32
Head Thickness
1/8
Length
6
Product Category
Straight Ejector Pins,Reduced Heads, Straight Ejector Pins, High Hardness - THX_RD,Reduced Heads, Straight Ejector Pins, High Hardness - THX RD,Pins, Sleeves And Blades,Mold Components
Standard
Inch

Specs

Pin Dia (Nominal)

1/32

Pin Dia Tol

+.0000/-.0003

Length Tol

+.062/-.000

Head Dia Tol

+.000/-.010

Head Thk Tol

+.000/-.002

Surface Hardness

62-65 RC

Core Hardness

50-52 RC

Material

Premium Hot Work Steel

Annealed Head

Yes
